Product Introduction

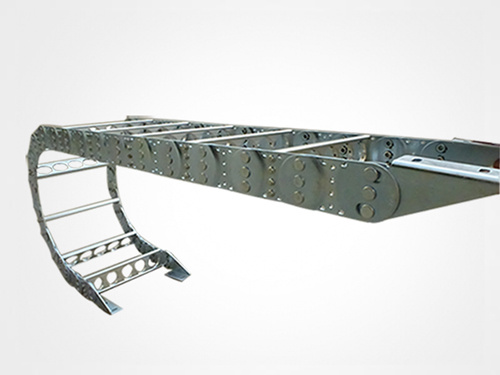

The TL-series steel-and-aluminum drag chain consists of components such as link plates (made of high-quality chrome-plated steel), support plates (extruded aluminum alloy), and pivot pins (alloy steel). These components ensure that there is no relative motion or torsional deformation between the cable or rubber hose and the bridge-type drag chain. The chrome-plated link plates feature a modern appearance, a rational structure, exceptional maneuverability, high strength, excellent rigidity with no deformation, convenient installation, reliable operation, and easy disassembly and reassembly. In particular, the use of high-strength, wear-resistant materials—such as alloy copper for the pivot pins—significantly enhances the product’s wear resistance, allows for more flexible bending, reduces frictional resistance, and lowers noise levels. As a result, the chain can maintain its shape and remain free from sagging even after prolonged use.

Product Features

Product Advantages

● The steel and aluminum drag chains are manufactured from metallic materials such as Q235, 430, and 304, featuring a rational design that ensures robustness and reliability. Material selection can be tailored to specific operating environments to achieve optimal performance.

● The steel drag chain link plates, after chrome plating, feature a novel appearance, rational structure, and excellent maneuverability and strength. This product boasts superior rigidity and resistance to deformation, ensuring that, during operation, the cable or rubber hose does not undergo torsional distortion as it moves relative to the bridge-type drag chain.

● Easy to install, reliable in operation, simple to disassemble and reassemble, and resistant to sagging. It can be freely dismantled and installed, and customized to meet specific customer requirements for length, offering exceptional flexibility and eliminating waste. Thanks to its dependable material, it supports substantial spans without sagging, ensuring stable performance even over long distances.

Product Specifications

Scope of Application

Suitable for applications involving reciprocating motion, it can effectively guide and protect internal cables, oil hoses, air hoses, water pipes, and other conduits. Each link of the steel–aluminum drag chain is designed to be opened, facilitating installation and maintenance. It operates with low noise, excellent wear resistance, and can accommodate high-speed movement. Steel drag chains are widely used in CNC machine tools, electronic equipment, stone-processing machinery, glass-processing machinery, door and window manufacturing equipment, injection molding machines, robotic arms, heavy-duty transport equipment, automated warehouses, and many other applications.
