Product Introduction

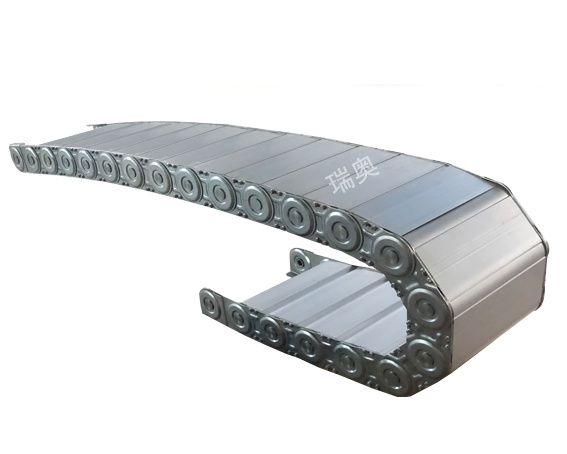

The TLG steel drag chain can accommodate a large number of heavy cables and hydraulic hoses, with long free-suspension spans (allowing for operation without support rollers). The width of the support plates is custom-made to meet customer requirements, and the product is available as either a fully enclosed drag chain or a bridge-type metal drag chain. It is suitable for machine tools, mobile machinery, and other applications. The bending radius ranges from 75 to 600 mm, and the chain plate height from 50 to 150 mm, with options to suit any application. The TLG metal drag chain boasts a maximum travel distance of 32 meters and is compatible with all types of drive systems, allowing for flexible extension or reduction in length. Additionally, the bending radius can be adjusted by changing the pivot pins. The TLG fully enclosed drag chain and bridge-type metal drag chain provide an ideal solution for handling larger steel chains, with support plates manufactured according to user specifications. They are robust and durable.

Product Features

Product Advantages

● The steel and aluminum drag chains are manufactured from metallic materials such as Q235, 430, and 304, with a well-designed structure that ensures maximum strength and reliability. Material selection can be tailored to suit different operating environments, thereby achieving optimal performance.

● Easy to install, reliable in operation, simple to disassemble and reassemble, and resistant to sagging. It can be freely dismantled and installed, and customized to meet specific customer requirements for length, offering exceptional flexibility and eliminating waste. Thanks to its dependable material, it supports substantial spans without sagging, ensuring stable performance even over long distances.

● Unlike conventional drag chains, steel metal drag chains can be customized to meet diverse application requirements by using fixed aluminum profiles. With support plate widths of up to 1,200 mm, these chains provide impeccable internal compartmentalization even at high speeds and travel rates, ensuring optimal protection for cables. Steel drag chains are suitable for use in machine tools, mobile machinery, and other applications.

Product Specifications

Scope of Application

Suitable for applications involving reciprocating motion, it provides traction and protection for internal cables, oil hoses, air lines, water pipes, and other conduits. Each link of the steel energy chain can be opened, facilitating installation and maintenance. It operates with low noise, exhibits excellent wear resistance, and is capable of high-speed movement. TLG fully enclosed energy chains and bridge-type metal energy chains are widely used in CNC machine tools, electronic equipment, stone-processing machinery, glass-processing machinery, door-and-window manufacturing equipment, injection molding machines, robotic arms, heavy-haul transport equipment, automated warehouses, and more.
