EnglishMachine tool damping pad iron (high-grade type)
Keywords：
Classification:
Details
Product Introduction

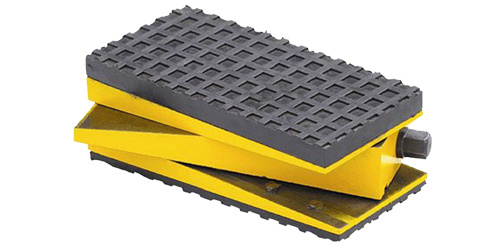

The shock-absorbing pad iron has the characteristics of vibration isolation, vibration reduction, noise reduction, convenient installation, and rapid adjustment. It is suitable for medium and small instrument machine tools and rubber, textile, food machinery, etc. The adjustment pad iron is suitable for heavy, large and medium-sized machine tools.
Foot shoe chassis for reinforced nylon, with rubber pad, screw material for carbon steel nickel/stainless steel.
Product advantages
The damping rubber effectively attenuates the vibration of the machine itself, reduces the external transmission of vibration force, prevents the introduction of vibration force, and ensures the accuracy and quality of the processing size. Control building structure resonance transmission vibration force and noise. Make rough, finishing all kinds of machine tools to form a production unit to adapt to the development of logistics technology.
● Installation of the machine does not need to set the anchor bolts and the ground fixed, good vibration and considerable vertical deflection, so that the machine is stable on the ground. Save installation costs and shorten the installation cycle. Can be exchanged at any time according to production.
● Nitrile synthetic rubber, resistant to grease and coolant.
Product Parameters
| Product Number |
Dimensional parameters (mm) |
Bolt (mm) |
Adjustable height (mm) |
Maximum bearing capacity of single piece |
|
| Φ-H-Sh |
Φ |
H |
M |
h |
Fmax(N) |
| S78 040-15-50 |
40 |
15 |
M5 × 30 |
5 |
250 |
| S78 080-25-60 |
80 |
25 |
M10 × 80 |
8 |
1700 |
| S78 120-32-70 |
120 |
32 |
M12 × 100 |
12 |
8500 |
| S78 160-35-70 |
160 |
35 |
M16 × 120(M20) |
12 |
24000 |
| S78 185-39-70 |
185 |
39 |
M20 × 2.5 × 160 (M16) |
12 |
31000 |
| S78 228-54-70 |
228 |
54 |
M24 × 3 × 180 (M20) |
12 |
43000 |
| S78 315-70-80 |
318 |
70 |
M30 × 3.5 × 180 (M30) |
12 |
95000 |
| S77 150-75 |
150 × 80 × 70 |
16 |
5 |
500 |
|
| S77 200-95 |
200 × 100 × 80 |
16 |
6 |
800 |
|
| S77 250-115 |
250 × 120 × 100 |
18 |
8 |
1000 |
|
| S79 063-17 |
63 |
17 |
M10 × 80(110) |
15 |
800 |
| S79 076-20 |
76 |
20 |
M12 × 100(130) |
20 |
1300 |
| S79 086-25 |
86 |
25 |
M12 × 100(130) |
20 |
3000 |
| S79 110-28 |
110 |
28 |
M16 × 120(180) |
25 |
5500 |
| S79 127-30 |
127 |
30 |
M16 × 120(180) |
25 |
9000 |
| S79 150-33 |
150 |
33 |
M16 × 120(180) |
25 |
15000 |
| Foot hoof specifications, specific models, please consult customer service. |
|||||
Product Features
01
reasonable structure
02
Easy and fast installation
03
Cost savings
04
Resistant to grease and coolants
Scope of application
Metal processing machine tools, forging machine tools, textile, printing machinery, food processing machines, rubber machinery, cables, cable machinery, packaging machinery, generators and heavy equipment. Among them, S77 shock-absorbing pad iron is only applicable to equipment without foundation mounting holes of machine tools.
