Product Introduction

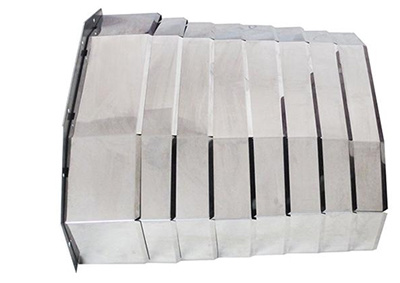

Custom armor-style protective cover, beautiful appearance. Each folding layer can withstand strong vibration without deformation, and at the same time, it is applied to the wind box to 900 ℃ high temperature and still maintain the original state. They support each other and play a role in hindering the penetration of small fragments. Also known as armor protective cover, telescopic protective cover.

Product Features

Product advantages

● The armor-type protective cover uses oil-resistant and corrosion-resistant rubber as a connector and is composed of special aluminum alloy strips, under normal circumstances. There is no need to install a guide plate. Therefore, it has the characteristics of small size, beautiful appearance, good structural reliability, and small space occupation. It is especially suitable for cases where other protective devices cannot be used due to space position restrictions. The use of this skirt curtain can better reflect its armor protective cover is a kind of machine tool protective cover, which is used to prevent high-temperature chips and other sharp things from entering the machine tool guide rail and play an effective protective role.

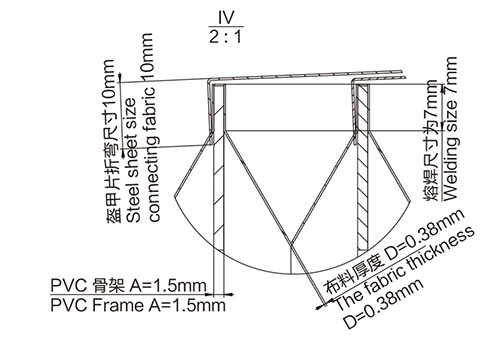

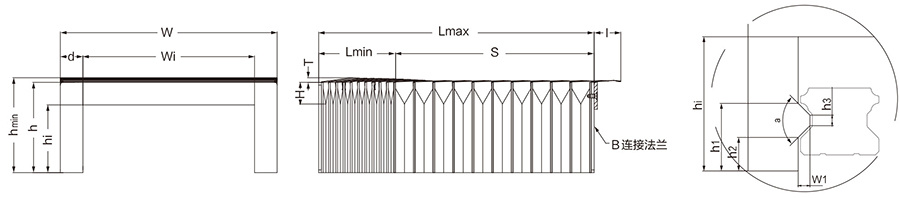

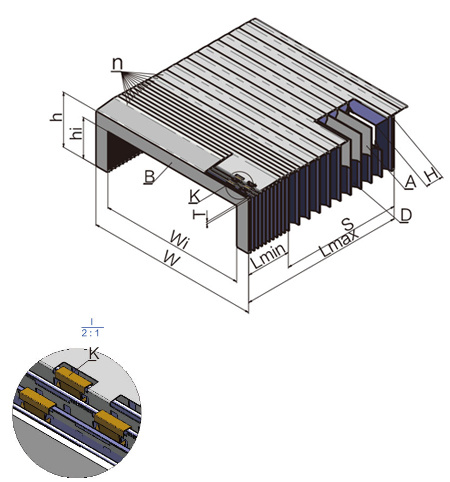

Schematic diagram of technical parameters

K is the buckle of the armor piece. When the expansion space is insufficient, it must be cross-assembled.

T is the thickness of armor sheet after shield compression

Lmax = maximum stretch of the shield

Lmin = minimum compression of the shield

S = stroke length

W = Outer width of shield

Wi = Inner width of shield

h = outer height of protective cover

hi = shield inner height

H = Folding height of the shield

n = number of folds of shield

D = Fabric for protective cover

A = Shield skeleton

B = Flanges at both ends of the shield

H≤ h-hi or H≤(W-Wi)/2 (symmetrical on both sides); unless otherwise specified, the flange at both ends of the protective cover is made of Q235, and the armor piece is SUS304.

Product shape

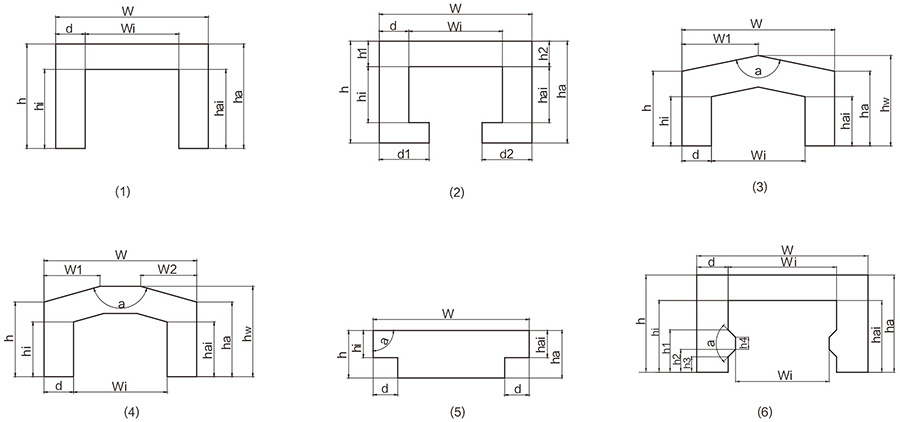

Basic shape:

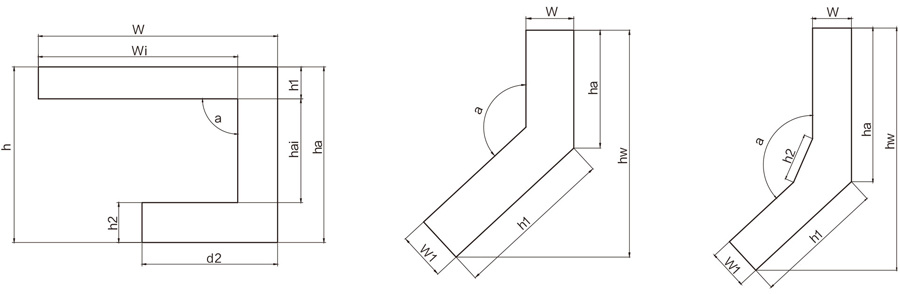

special-shaped protective cover:

Technical parameter table

	15	20	25	30	35	40	45	50	55
100	56	31	26	21	16	16	16	16	16
150	81	46	31	26	21	21	21	16	16
200	106	56	41	31	26	26	21	21	21
250	131	71	51	41	31	31	26	26	21
300	156	81	56	46	36	31	31	26	26
350	181	96	66	51	41	36	31	31	26
400	206	106	76	56	46	41	36	31	31
450	231	121	81	61	51	46	41	36	31
500	256	131	91	71	56	51	46	41	36
550	281	146	101	76	61	56	51	46	41
600	306	156	106	81	66	61	56	51	46
650	331	171	116	91	71	66	61	56	51
700	356	181	126	96	76	71	66	61	56
750	381	206	141	101	81	76	71	66	61
800	406	216	146	106	86	81	76	71	66
850	431	231	156	111	91	86	81	76	71
900	456	246	166	116	96	91	86	81	76
950	481	256	171	121	101	96	91	86	81
1000	506	271	181	131	106	101	96	91	86
1500	-	-	256	196	156	131	116	101	91
2000	-	-	341	256	206	176	151	131	121
2500	-	-	426	321	256	216	186	166	146
3000	-	-	506	381	306	256	221	196	176
3500	-	-	591	446	356	296	256	226	201
4000	-	-	676	506	406	336	291	256	231
4500	-	-	756	571	456	376	326	291	256
5000	-	-	841	631	506	416	361	321	286

Scope of application

Armor-type protective cover is widely used in grinding machines, precision instruments, measuring instruments, CNC machines and other mechanical fields of the guide rail, beam, column. Due to the excellent adhesion between the pre-installed armor, the telescopic protective cover provides a reliable protective layer against large amounts of dust, sand, iron filings, etc.

Ordering parameter list and receipt of armor protective cover

● The above data, CAD drawings or three-dimensional drawings of machine tools (.stp / .x-t / .igs and other formats) shall be provided when ordering, and our company can carry out evaluation and design.

● If there are special requirements for ordering armor protective cover, please fill in the remarks column or contact our company directly. If there is no requirement, it will be made according to our standard.

● Detailed drawings shall be provided for the design of some guide rails

● If the Ordering Party provides a drawing of the complete armor telescopic protective cover, please indicate whether there is any allowance between the drawing and the guide rail.

● We will send this order with the product at the time of delivery.
