Product Introduction

Fabrication process

Flexible organ type guide shield is also called skin tiger.

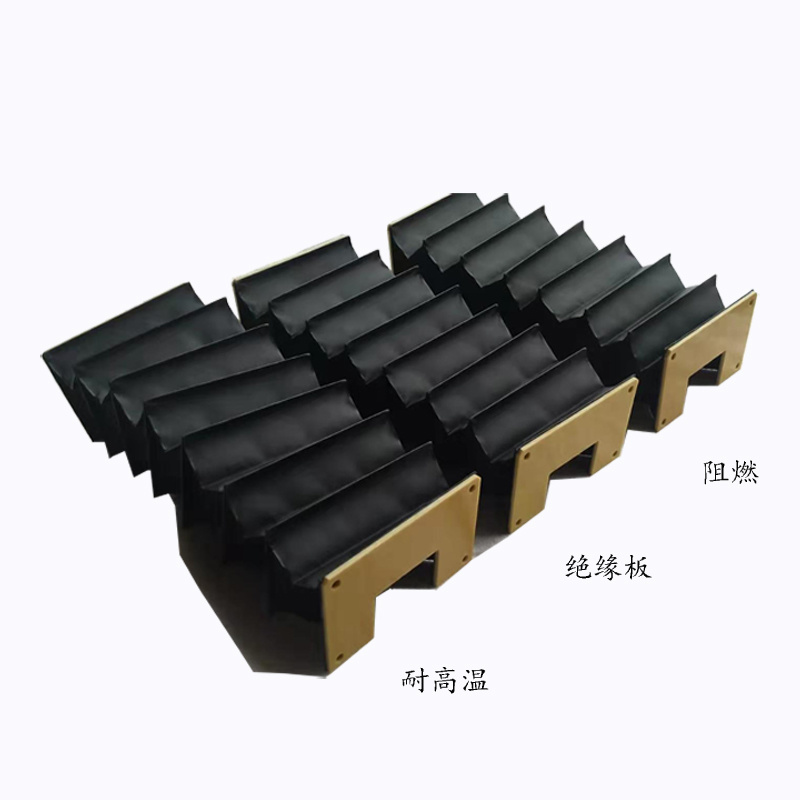

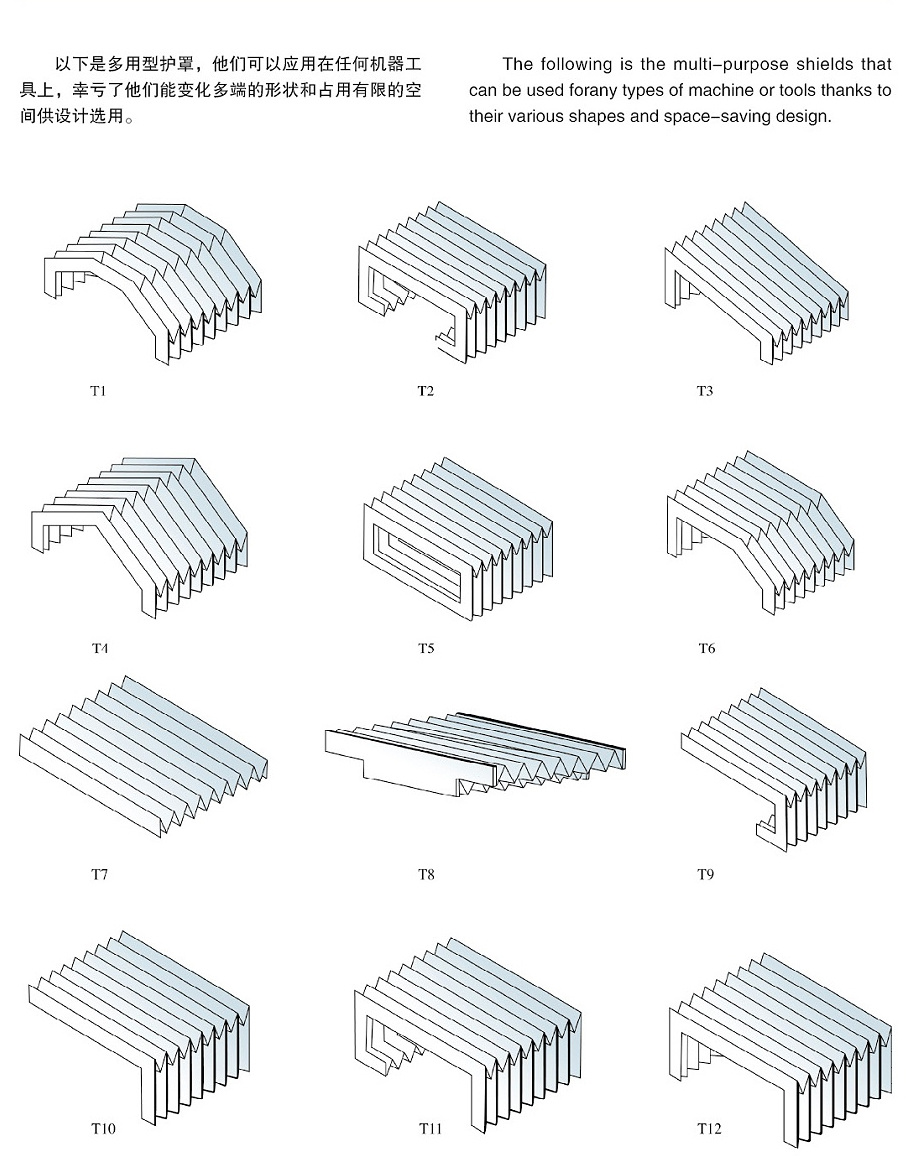

It is a series of products that can be combined arbitrarily, and its raw materials, appearance, processing methods and sizes can be determined according to the actual situation. One of its basic components is that each hinge is equipped with a PVC skeleton that plays a supporting and stabilizing role. This skeleton can be closely connected to the external hinge material through different processing methods. One is thermal bonding. At a certain temperature, with the help of special flux can make the internal PVC skeleton and the external folding firmly bonded together. If the shield is used in a medium temperature environment, you can choose this way. This kind of thermal bonding shield does not need to maintain it at all, and is waterproof, dustproof, oil-resistant and acid-resistant. The other is the sewing method, which is used in high temperature working environment. Sew with a special thread that is strong and durable even under extreme loads. The PVC skeleton is fixed on each fold by sewing to reinforce the stabilizing shield. At the same time, there are a variety of materials for you to choose. Through the use of internal support material to increase the shape stability of the shield, the stability of the direct performance of the shield is to ensure that the original shape can be restored.

Order requirements fill in this form organ guide shield style can be customized according to the actual situation of customers.

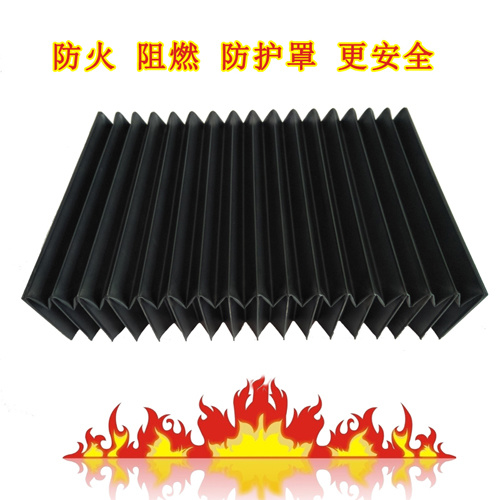

Material according to the use of the environment and temperature and processing technology is different, nylon cloth, insulating coil, rubber cloth, tarpaulin, waterproof cloth, flame retardant high temperature resistant fireproof cloth, PVC cloth and so on to choose.

Scope of use

With the continuous improvement of machinery and equipment, the requirements of the protection system have also increased accordingly, especially the use of servo motors makes the speed of processing machinery higher and higher, sometimes up to 200 m/min, which requires anti-pulling but light-weight materials. Protection. In addition, the flexible organ guide shield is more and more widely used in the fields of medicine, measurement, automatic control and food technology. These industries require the shield to be dust-proof and have no effect on food. It is also more and more widely used in the lifting platform of automobile production assembly line.

Characteristics

1. Not afraid of stepping on the foot, hard objects will not deform when colliding, long life, good sealing and light operation.

2. Long stroke and small compression.

3. Coolant resistance, oil resistance, waterproof, acid resistance, anti-grinding wheel foam and iron filings, etc.

4. The speed can reach 200 m/min.

Precautions

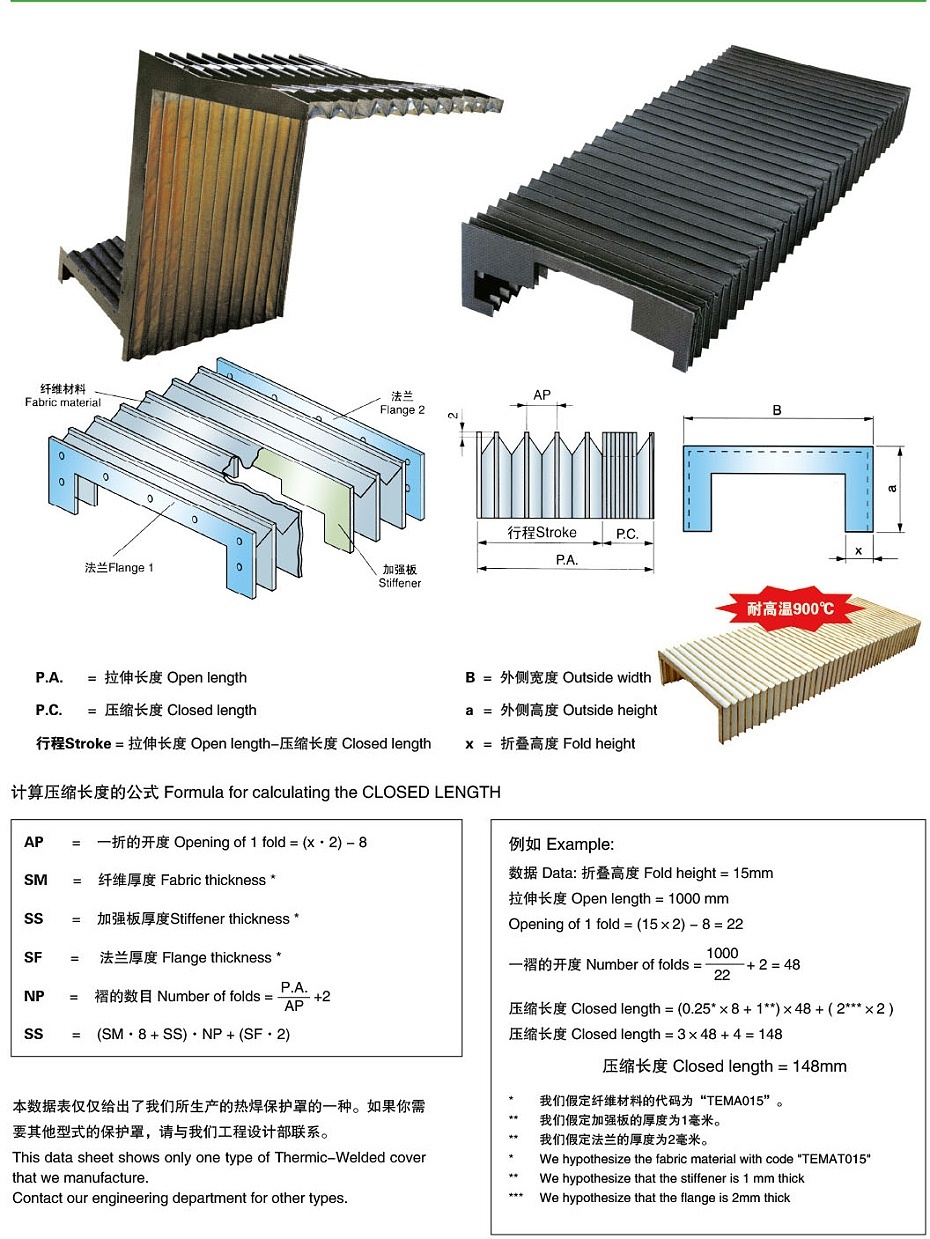

(1) Height of standard folding surface: 15mm, 20mm, 30mm, 35mm, 40mm, 45mm, 50mm.

(2) The distance between the guide rail surface of the mechanical equipment and the shield is at least 5 mm and the maximum is 10mm.

(3) When the folding surface of the shield is opened, the size is equal to twice the height of the folding surface.

(4) The thickness of the compressed folding surface is 4mm.
